| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | BQ NQ HQ PQ NQ3 HQ3 PQ3 |
Wireline Double Tube Core Barrels BQ NQ HQ PQ NQ3 HQ3 PQ3
Wireline core drilling equipment is very commonly used for mineral exploration for deep holes because of practical usage.
Wireline double tube core barrels are primarily used in deep coring. With an overshot device, they eliminate the need to couple and uncouple the rod string each time the core is retrieved.

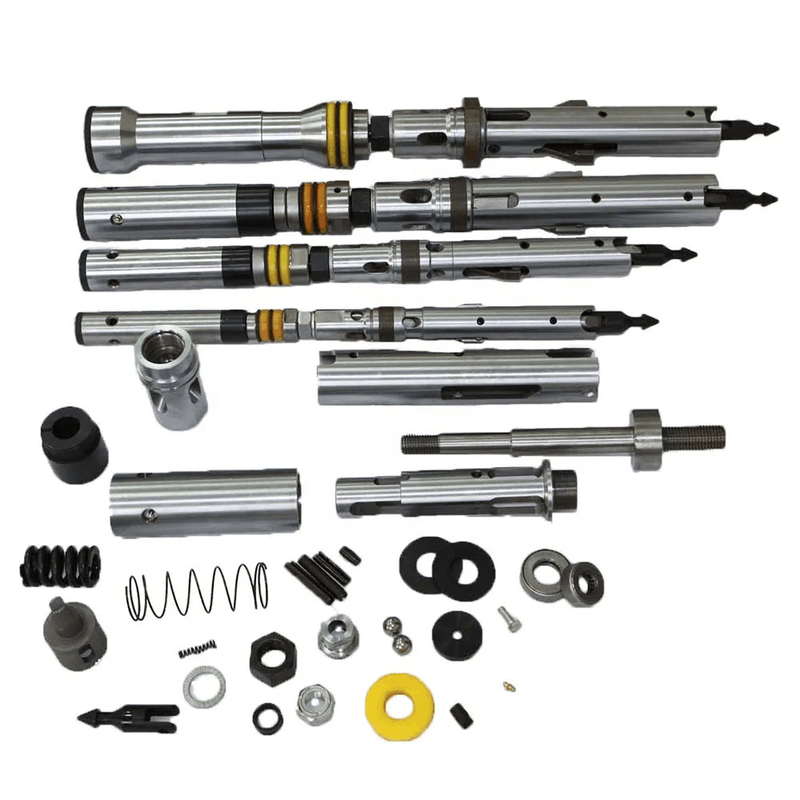

Our head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.
All with ISO certificate & quality control.
Product profile: Wireline Double Tube Core Barrels
| Wireline Double Tube Core Barrels | |||
| Size | Hole(mm) | Core(mm) | Head Thread |
| BQ | 59.3 | 36.2 | BQ rod box |
| NQ | 75.2 | 47.6 | NQ rod box |
| HQ | 95.6 | 63.5 | HQ rod box |
| PQ | 122 | 85 |
PQ rod box |
Roschen provide wireline double tube and triple tube core barrels with superior performance and obtain the full recovery of the sample in any application of diamond / wireline core drilling.
Core barrel part details:
| Item | Name | Qty |
| 1 | Head assembly | 1 |
| 2 | Inner tube | 1 |
| 3 | Stop ring | 1 |
| 4 | Core lifter | 1 |
| 5 | Core lifter case | 1 |
| 6 | Locking coupling | 1 |
| 7 | Adapter sub | 1 |
| 8 | Landing ring | 1 |
| 9 | Outer tube | 1 |
| 10 | stabilizer | 1 |
| 11 | Thread protector case | 1 |
| Weight | Item 1 (kg) | Item 2-11 (kg) |
| BQ 1.5m length | 6.5 | 24.8 |
| BQ 3.0m length | 6.5 | 35.8 |
| NQ 1.5m length | 12.5 | 37.2 |
| NQ 3.0m length | 12.5 | 59.7 |
| HQ 1.5m length | 19.2 | 49.5 |
| HQ 3.0m length | 19.2 | 87.3 |
| PQ 1.5m length | 30 | 72.5 |
| PQ 3.0m length | 30 | 117 .0 |
| Wireline diamond core bits, metricl diamond impregnated drill bits specifications | |
| Wireline "Q" series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Short |
| Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T Series: | T36, T46, T56, T66, T76, T86, T101 |
| TT Series: | TT46, TT56, TT66, TT76, TT86, TT101 |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TB Series Metric Core Bits: | TB36, TB46, TB56, TB66, TB76, TB86, TB101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| B Series(IS03552-1) Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| All other standard: | CDDA, DCDMA, Crealius, and ISO sizes |
Notes:
1. Core Bit and Reaming Shell are not supplied with the core barrel, and shall be ordered separately.
2. 1.5m and 3.0m length core barrels are available.
